Components

Arduino > Arduino modules
Component
Quantity
Links/Remarks
16 MHz 16.000M Mini Passive Resonator Quartz Crystal Oscillator (HC-49S)

10
DIP28 ATmega328P-PU MCU IC Chip With Arduino UNO Bootloader


5
  • 28 Pin Dip
  • 16 Mhz
  • 32KB Flash
  • 2KB Random Access Memory
  • 6 Analog/Digital Ports
  • 6 Basic Digital Ports
  • 6 PWM
  • 1 Serial bus (Tx & Rx)


Video: $2 Arduino The ATMEGA328 as a stand alone Easy, cheap and very small A complete guide (8 MHz)



Luxorparts IC hållare 28-
pin

10
ATtiny85

10
Parametrics
Name                                              Value
Program Memory Type                     Flash
Program Memory Size (KB)               8
CPU Speed (MIPS/DMIPS)                20
SRAM Bytes                                    512
Data EEPROM/HEF (bytes)               512
Digital Communication Peripherals    1-SPI, 1-I2C
Capture/Compare/PWM Peripherals  5 PWM
Timers                                           2 x 8-bit
Number of Comparators                  1
Temperature Range (C)                  -40 to 85
Operating Voltage Range (V)           1.8 to 5.5
Pin Count                                       8

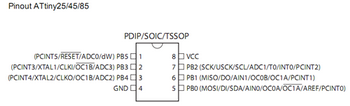

Pinmap:

IC-hållare 8-pin

10
40Pin 2.54mm Female Header Connector Socket

10
Luxorparts Spänningsregulator 7805CV 5 V 1.5A
5Output Voltage: 5V
Minimum Input Voltage: 7V
Max Input Voltage: 25V

Använd en elektrolytkondensator 10µF mellan Vin och Vout
LD1117V33 TO-220 Spänningsregulator 3.3V 0.8A

5
Output Voltage: 3.3V
Minimum Input Voltage: 4.3V
Max Input Voltage: 15V

Använd en elektrolytkondensator 10µF mellan Vin och Vout
Luxorparts Kylfläns TO-220
10
